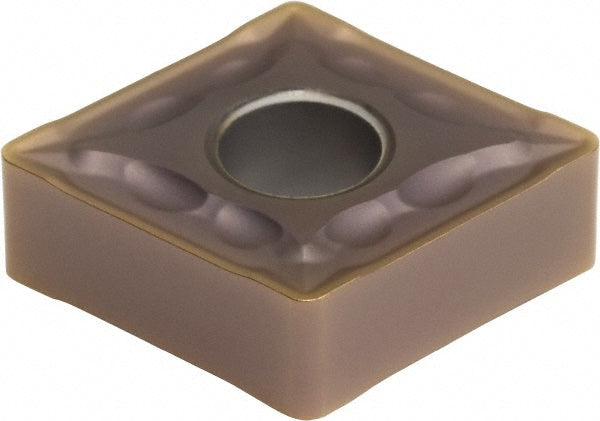

CNMG120412N-MU Solid Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HVAFJ
MFR# 19HVAFJISO/ANSI# CNMG120412N-MUSeries CN
$12.88List $16.23
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC510U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HVAFJ is a CNMG120412N-MU solid carbide indexable insert, grade AC510U, TiAlN coated.
Specifications
Ansi codeCNMG433EMU
Chip breakerEMU
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412N-MU
Manufacturer gradeAC510U
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialSuperalloy
StandardsANSI; ISO 13399
Tolerance codeM
