Sumitomo

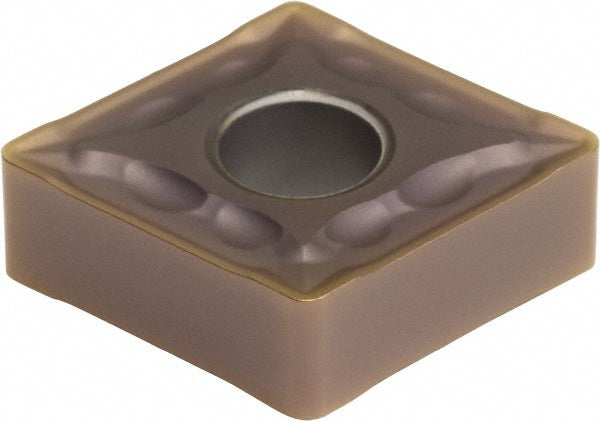

CNMG160612N-MU Solid Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HVAFL
MFR# 19HVAFLISO/ANSI# CNMG160612N-MUSeries CN
$18.15List $23.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeAC510U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HVAFL is a CNMG160612N-MU solid carbide indexable insert, grade AC510U, TiAlN coated.
Specifications
Ansi codeCNMG543EMU
Chip breakerEMU
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.2500
Included angle80.0
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6339
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612N-MU
Manufacturer gradeAC510U
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialSuperalloy
StandardsANSI; ISO 13399
Tolerance codeM
