Sumitomo

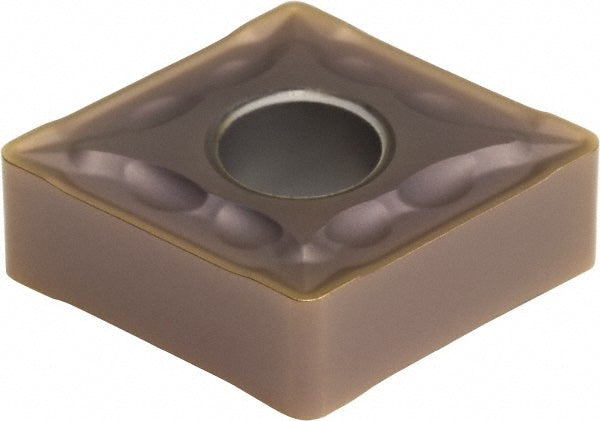

CNMG190612N-MU Solid Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HVAFN
MFR# 19HVAFNISO/ANSI# CNMG190612N-MUSeries CN
$28.26List $35.61
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeAC510U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HVAFN is a CNMG190612N-MU solid carbide indexable insert, grade AC510U, TiAlN coated.
Specifications
Ansi codeCNMG643EMU
Chip breakerEMU
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.3126
Included angle80.0
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7598
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190612N-MU
Manufacturer gradeAC510U
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
StandardsANSI; ISO 13399
Tolerance codeM
