Sumitomo

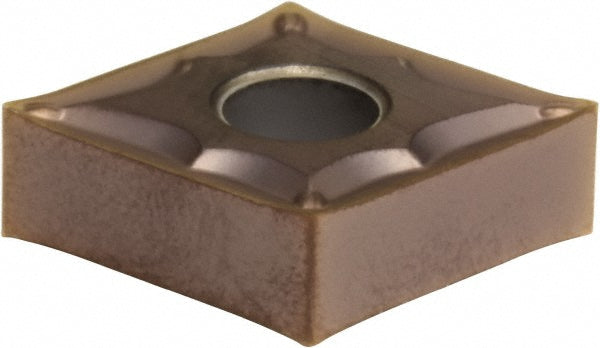

CNMG120404N-SU Solid Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HVANZ
MFR# 19HVANZISO/ANSI# CNMG120404N-SUSeries CN
$11.20List $14.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC510U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HVANZ is a CNMG120404N-SU solid carbide indexable insert, grade AC510U, TiAlN coated.
Specifications
Ansi codeCNMG431ESU
Chip breakerESU
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404N-SU
Manufacturer gradeAC510U
RakePositive
Rake angle13
Relief angle0
Secondary workpiece materialSuperalloy
StandardsANSI; ISO 13399
Tolerance codeM
