Sumitomo

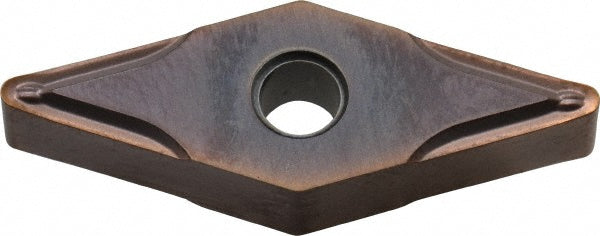

VNMG160408N-SU Solid Carbide Insert, Grade AC510U, Coated - Sumitomo 19HVAPS
MFR# 19HVAPSISO/ANSI# VNMG160408N-SUSeries VN
$16.31List $20.91
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC510U
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19HVAPS is a VNMG160408N-SU solid carbide indexable insert, grade AC510U, Coated coated.
Specifications
Ansi codeVNMG332ESU
Chip breakerESU
Clearance codeN
Coating finishCoated
Coating processPVD
Corner radius in1/32
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408N-SU
Manufacturer gradeAC510U
Material gradeC4
RakePositive
Rake angle13
Relief angle0
Secondary workpiece materialSuperalloy
StandardsANSI; ISO 13399
Tolerance codeM
