Sumitomo

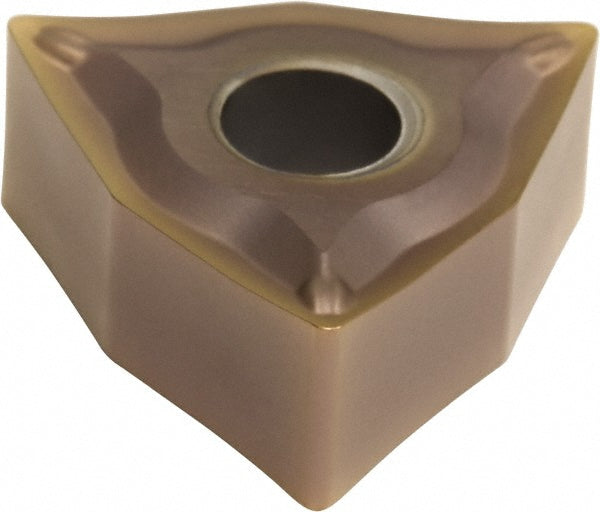

WNMG060404N-SU Solid Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HVBGA
MFR# 19HVBGAISO/ANSI# WNMG060404N-SUSeries TN
$9.84List $12.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeAC510U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HVBGA is a WNMG060404N-SU solid carbide indexable insert, grade AC510U, TiAlN coated.
Specifications
Ansi codeWNMG331ESU
Chip breakerESU
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.2559
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code331
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060404N-SU
Manufacturer gradeAC510U
RakePositive
Rake angle13
Relief angle0
Secondary workpiece materialSuperalloy
StandardsANSI; ISO 13399
Tolerance codeM
