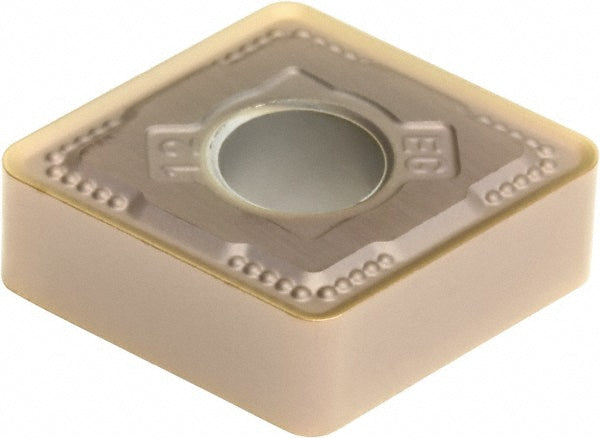

CNMG160612N-EG Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HVCGM

Sumitomo

CNMG160612N-EG Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HVCGM

MFR# 19HVCGMISO/ANSI# CNMG160612Series CN

$18.15List $23.27 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC510U
MaterialCarbide
CoatingTiAlN

Description

The Sumitomo 19HVCGM is a CNMG160612N-EG carbide indexable insert, grade AC510U, TiAlN coated.

Specifications

Ansi insert codeCNMG543
Ansi size code543
Chip breakerEEG
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6339
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612N-EG
Iso insert codeCNMG160612
Iso size code160612
Manufacturer gradeAC510U
RakeNeutral
Rake angle0
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
