Sumitomo

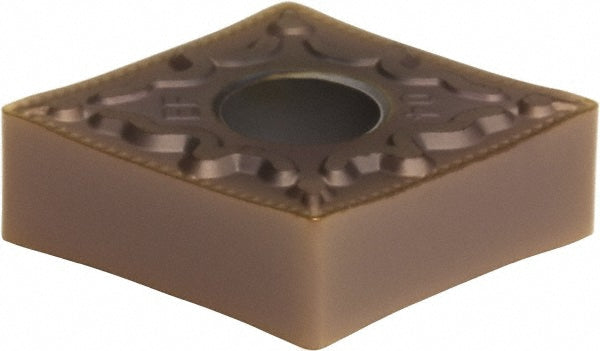

CNMG120404N-EF Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HVCGN
MFR# 19HVCGNISO/ANSI# CNMG120404N-EFSeries CN
$12.88List $16.23
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC510U
MaterialCarbide
CoatingTiAlN
Description
The Sumitomo 19HVCGN is a CNMG120404N-EF carbide indexable insert, grade AC510U, TiAlN coated.
Specifications
Chip breakerEEF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404N-EF
Manufacturer gradeAC510U
RakeNeutral
Rake angle0
Relief angle0
Secondary workpiece materialSuperalloy
StandardsANSI; ISO 13399
Tolerance codeM
