Sumitomo

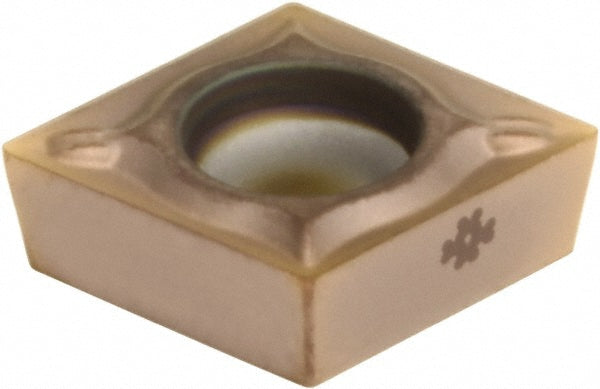

CCMT09T304N-SU Solid Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HVW1M
MFR# 19HVW1MISO/ANSI# CCMT09T304N-SUSeries CC
$11.27List $14.21
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC510U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HVW1M is a CCMT09T304N-SU solid carbide indexable insert, grade AC510U, TiAlN coated.
Specifications
Ansi codeCCMT32.51ESU
Chip breakerESU
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304N-SU
Manufacturer gradeAC510U
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialSuperalloy
StandardsANSI; ISO 13399
Tolerance codeM
