Sumitomo

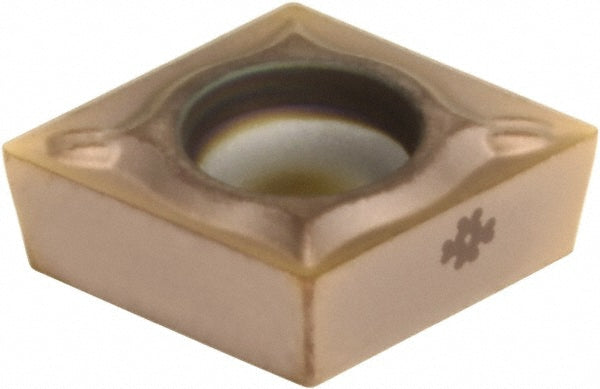

CCMT09T308N-SU Solid Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HVW27
MFR# 19HVW27ISO/ANSI# CCMT09T308N-SUSeries CC
$9.64List $12.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC510U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HVW27 is a CCMT09T308N-SU solid carbide indexable insert, grade AC510U, TiAlN coated.
Specifications
Ansi codeCCMT32.52ESU
Chip breakerESU
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308N-SU
Manufacturer gradeAC510U
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialSuperalloy
StandardsANSI; ISO 13399
Tolerance codeM
