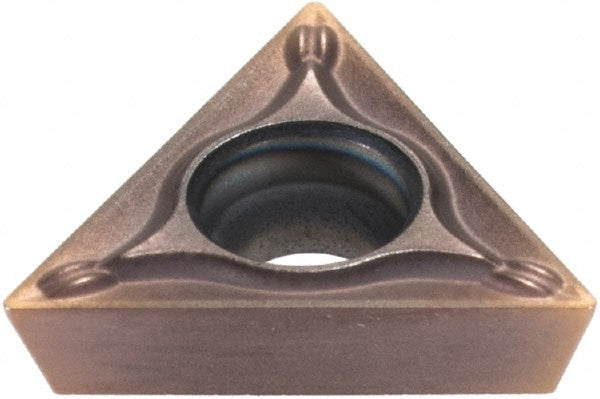

TPMT110202N-SU Solid Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HVWBD

Sumitomo

TPMT110202N-SU Solid Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HVWBD

MFR# 19HVWBDISO/ANSI# TPMT110202N-SUSeries TPMT

$9.07List $11.64 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeTriangle
GradeAC510U
MaterialSolid Carbide
CoatingTiAlN

Description

The Sumitomo 19HVWBD is a TPMT110202N-SU solid carbide indexable insert, grade AC510U, TiAlN coated. Suited for cast iron, stainless steel, superalloy.

Specifications

Ansi codeTPMT21.50.5ESU
Chip breakerESU
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius0.0078
Hole diameter0.1070
Included angle60.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code21.5
Insert styleTPMT
Insert thickness in3/32
Iso codeTPMT110202N-SU
Manufacturer gradeAC510U
Primary workpiece materialCast Iron; Stainless Steel; Superalloy
RakePositive
Rake angle8
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
