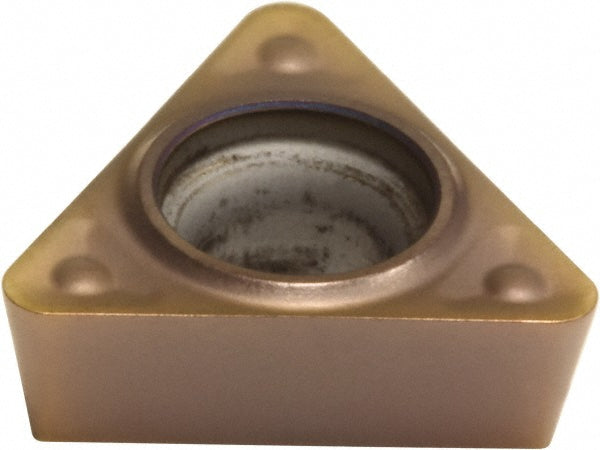

TPMT110304N-SF Solid Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HVWC7

Sumitomo

TPMT110304N-SF Solid Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HVWC7

MFR# 19HVWC7ISO/ANSI# TPMT110304N-SFSeries TPMT

$8.49List $10.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeTriangle
GradeAC510U
MaterialSolid Carbide
CoatingTiAlN

Description

The Sumitomo 19HVWC7 is a TPMT110304N-SF solid carbide indexable insert, grade AC510U, TiAlN coated. Suited for cast iron, stainless steel, superalloy.

Specifications

Ansi codeTPMT221ENF
Chip breakerENF
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1300
Included angle60.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code221
Insert styleTPMT
Insert thickness in1/8
Iso codeTPMT110304N-SF
Manufacturer gradeAC510U
Primary workpiece materialCast Iron; Stainless Steel; Superalloy
RakeNeutral
Rake angle0
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
