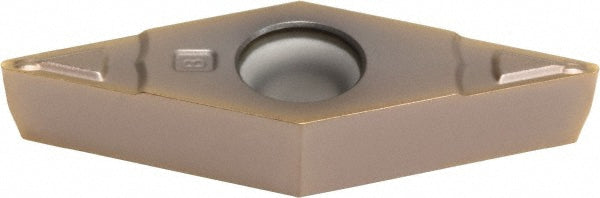

VBMT110308N-SU Solid Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HVWDN

Sumitomo

VBMT110308N-SU Solid Carbide Insert, Grade AC510U, TiAlN - Sumitomo 19HVWDN

MFR# 19HVWDNISO/ANSI# VBMT110308N-SUSeries VB

$12.00List $15.11 Save 20%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC510U
MaterialSolid Carbide
CoatingTiAlN

Description

The Sumitomo 19HVWDN is a VBMT110308N-SU solid carbide indexable insert, grade AC510U, TiAlN coated.

Specifications

Ansi codeVBMT222ESU
Chip breakerESU
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1340
Included angle35.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4370
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code222
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT110308N-SU
Manufacturer gradeAC510U
RakePositive
Rake angle8
Relief angle5
Secondary workpiece materialSuperalloy
StandardsANSI; ISO 13399
Tolerance codeM
