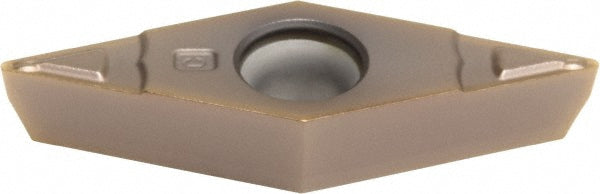

VCMT160404N-SU Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HW106

Sumitomo

VCMT160404N-SU Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HW106

MFR# 19HW106ISO/ANSI# VCMT160404Series VC

$19.32List $24.78 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeAC520U
MaterialCarbide
CoatingTiAlN

Description

The Sumitomo 19HW106 is a VCMT160404N-SU carbide indexable insert, grade AC520U, TiAlN coated.

Specifications

Ansi insert codeVCMT331
Ansi size code331
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6535
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVCMT
Insert thickness in3/16
Iso codeVCMT160404N-SU
Iso insert codeVCMT160404
Iso size code160404
Manufacturer gradeAC520U
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialStainless Steel; Superalloy
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
