Sumitomo

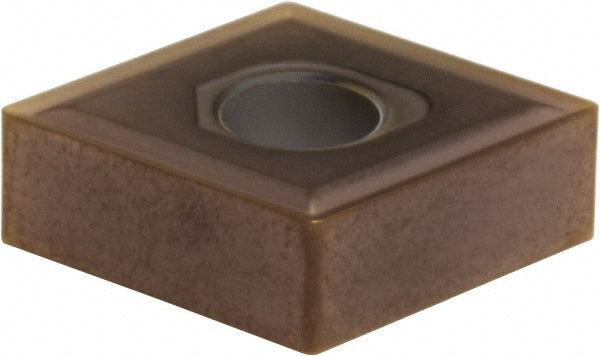

CNMG120408N-EX Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HW165
MFR# 19HW165ISO/ANSI# CNMG120408N-EXSeries CN
$11.20List $14.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC520U
MaterialCarbide
CoatingTiAlN
Description
The Sumitomo 19HW165 is a CNMG120408N-EX carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Chip breakerEEX
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-EX
Manufacturer gradeAC520U
RakePositive
Rake angle16
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy; Titanium
StandardsANSI; ISO 13399
Tolerance codeM
