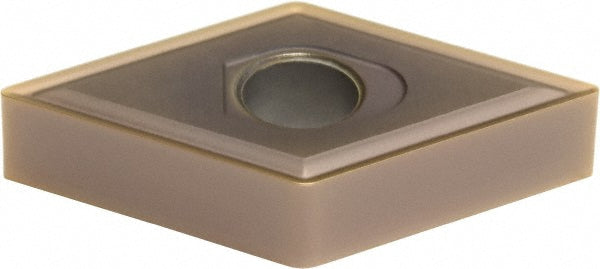

DNMG150404N-EX Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HW169
MFR# 19HW169ISO/ANSI# DNMG150404N-EXSeries DN
$15.71List $20.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC520U
MaterialCarbide
CoatingTiAlN
Description
The Sumitomo 19HW169 is a DNMG150404N-EX carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Chip breakerEEX
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.2031
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404N-EX
Manufacturer gradeAC520U
RakePositive
Rake angle16
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy; Titanium
StandardsANSI; ISO 13399
Tolerance codeM
