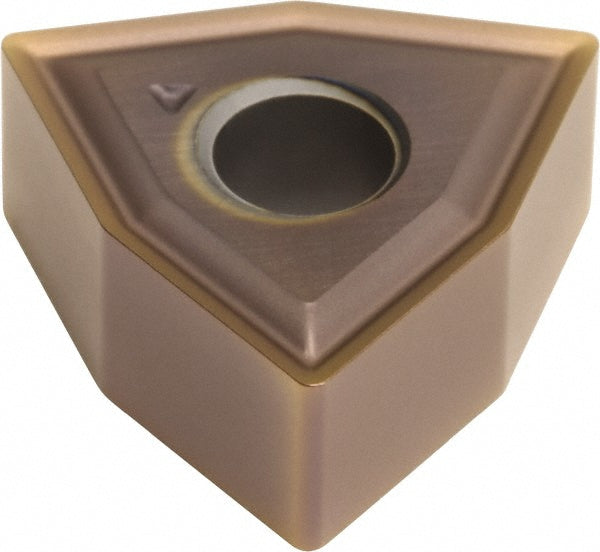

WNMG080404N-EX Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HW177

Sumitomo

WNMG080404N-EX Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HW177

MFR# 19HW177ISO/ANSI# WNMG080404Series TN

$11.20List $14.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeAC520U
MaterialCarbide
CoatingTiAlN

Description

The Sumitomo 19HW177 is a WNMG080404N-EX carbide indexable insert, grade AC520U, TiAlN coated.

Specifications

Ansi insert codeWNMG431
Ansi size code431
Chip breakerEEX
Chip breaker operationLight Machining; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080404N-EX
Iso insert codeWNMG080404
Iso size code080404
Manufacturer gradeAC520U
RakePositive
Rake angle16
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
