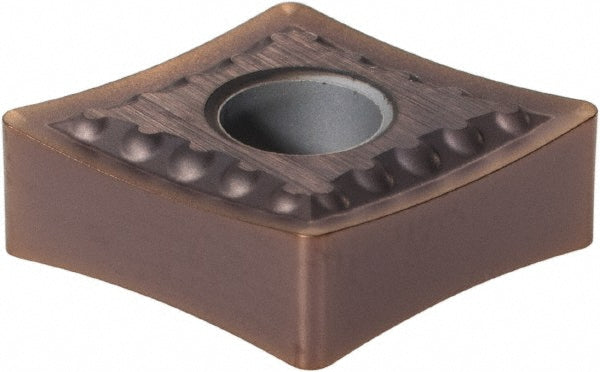

CNMG120408N-UP Carbide Insert, Grade AC520U, Coated - Sumitomo 19HW360

Sumitomo

CNMG120408N-UP Carbide Insert, Grade AC520U, Coated - Sumitomo 19HW360

MFR# 19HW360ISO/ANSI# CNMG120408Series CN

$11.20List $14.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC520U
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19HW360 is a CNMG120408N-UP carbide indexable insert, grade AC520U, Coated coated.

Specifications

Ansi insert codeCNMG432
Ansi size code432
Chip breakerEUP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishCoated
Coating processPVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-UP
Iso insert codeCNMG120408
Iso size code120408
Manufacturer gradeAC520U
Material gradeC2; C3
RakePositive
Rake angle10
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
