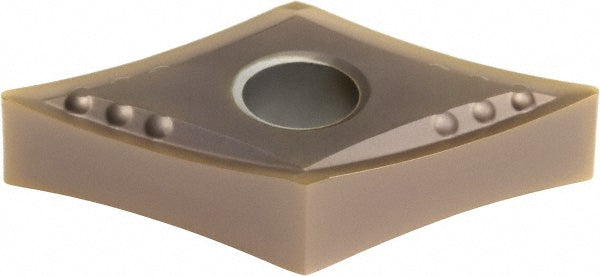

DNMG150408N-UP Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HW367

Sumitomo

DNMG150408N-UP Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HW367

MFR# 19HW367ISO/ANSI# DNMG150408Series DN

$15.71List $20.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC520U
MaterialCarbide
CoatingTiAlN

Description

The Sumitomo 19HW367 is a DNMG150408N-UP carbide indexable insert, grade AC520U, TiAlN coated.

Specifications

Ansi insert codeDNMG432
Ansi size code432
Chip breakerEUP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408N-UP
Iso insert codeDNMG150408
Iso size code150408
Manufacturer gradeAC520U
RakePositive
Rake angle10
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
