Sumitomo

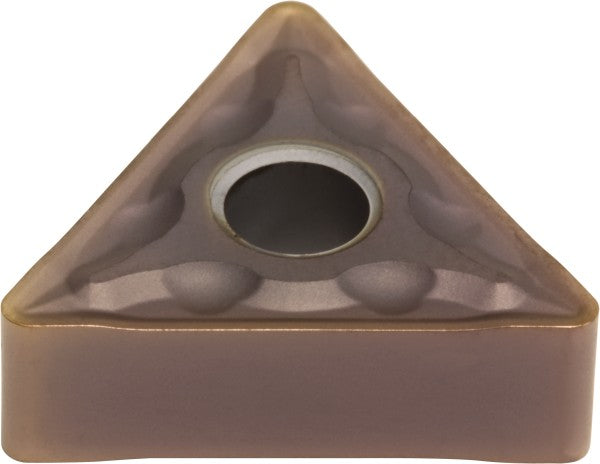

TNMG220408N-MU Solid Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HWAFC
MFR# 19HWAFCISO/ANSI# TNMG220408N-MUSeries TN
$15.97List $20.13
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeAC520U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HWAFC is a TNMG220408N-MU solid carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Ansi codeTNMG432EMU
Chip breakerEMU
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle60.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408N-MU
Manufacturer gradeAC520U
RakePositive
Rake angle4
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy; Titanium
StandardsANSI; ISO 13399
Tolerance codeM
