Sumitomo

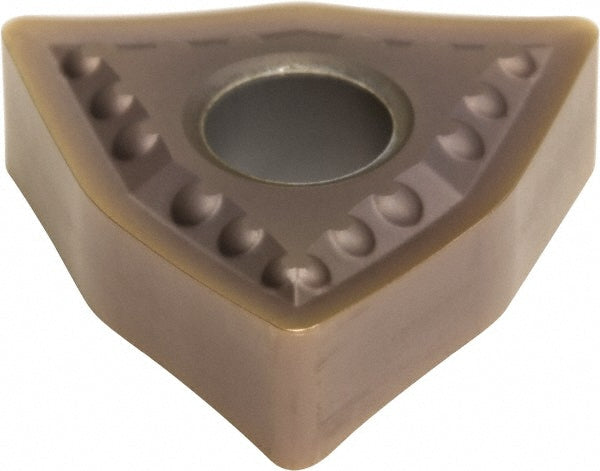

WNMG080408N-UP Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HWAGQ
MFR# 19HWAGQISO/ANSI# WNMG080408N-UPSeries TN
$11.20List $14.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC520U
MaterialCarbide
CoatingTiAlN
Description
The Sumitomo 19HWAGQ is a WNMG080408N-UP carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Chip breakerEUP
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408N-UP
Manufacturer gradeAC520U
RakePositive
Rake angle10
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy
StandardsANSI; ISO 13399
Tolerance codeM
