Sumitomo

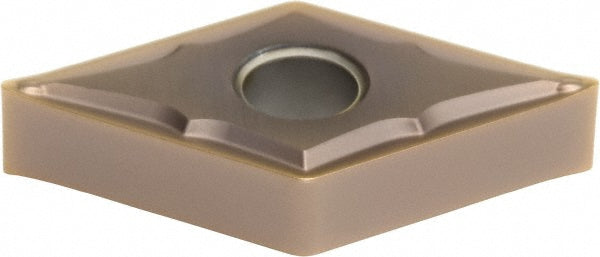

DNMG150408N-SU Solid Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HWAPL
MFR# 19HWAPLISO/ANSI# DNMG150408N-SUSeries DN
$15.71List $20.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC520U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HWAPL is a DNMG150408N-SU solid carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Ansi codeDNMG432ESU
Chip breakerESU
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408N-SU
Manufacturer gradeAC520U
RakePositive
Rake angle13
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy; Titanium
StandardsANSI; ISO 13399
Tolerance codeM
