Sumitomo

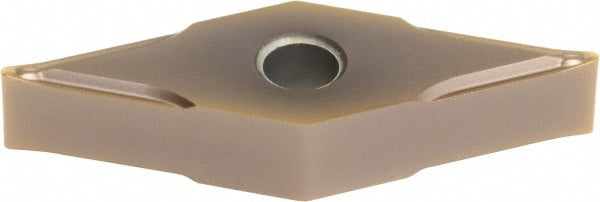

VNMG160404N-SU Solid Carbide Insert, Grade AC520U, Coated - Sumitomo 19HWAPR
MFR# 19HWAPRISO/ANSI# VNMG160404N-SUSeries VN
$16.31List $20.91
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC520U
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19HWAPR is a VNMG160404N-SU solid carbide indexable insert, grade AC520U, Coated coated.
Specifications
Ansi codeVNMG331ESU
Chip breakerESU
Clearance codeN
Coating finishCoated
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404N-SU
Manufacturer gradeAC520U
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy; Titanium
StandardsANSI; ISO 13399
Tolerance codeM
