Sumitomo

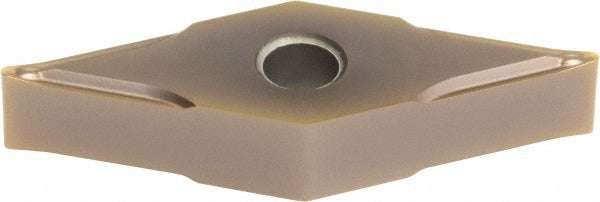

VNMG160408N-SU Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HWAPS
MFR# 19HWAPSISO/ANSI# VNMG160408N-SUSeries VN
$16.31List $20.91
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC520U
MaterialCarbide
CoatingTiAlN
Description
The Sumitomo 19HWAPS is a VNMG160408N-SU carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Chip breakerESU
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408N-SU
Manufacturer gradeAC520U
RakePositive
Rake angle13
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy; Titanium
StandardsANSI; ISO 13399
Tolerance codeM
