Sumitomo

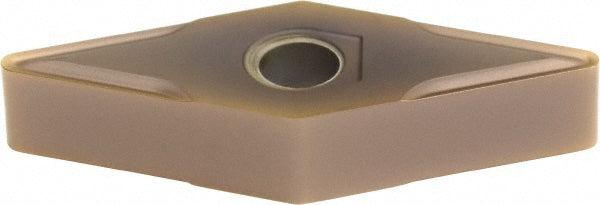

VNMG160408N-EX Solid Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HWBRN
MFR# 19HWBRNISO/ANSI# VNMG160408N-EXSeries VN
$16.31List $20.91
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC520U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HWBRN is a VNMG160408N-EX solid carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Ansi codeVNMG332EEX
Chip breakerEEX
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408N-EX
Manufacturer gradeAC520U
RakePositive
Rake angle16
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy
StandardsANSI; ISO 13399
Tolerance codeM
