Sumitomo

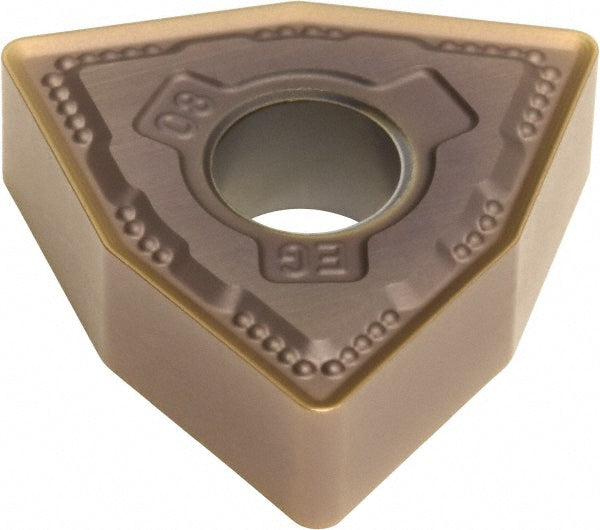

WNMG080408N-EG Solid Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HWCGK
MFR# 19HWCGKISO/ANSI# WNMG080408N-EGSeries TN
$12.88List $16.23
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC520U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HWCGK is a WNMG080408N-EG solid carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Ansi codeWNMG432EEG
Chip breakerEEG
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408N-EG
Manufacturer gradeAC520U
RakeNeutral
Rake angle0
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy
StandardsANSI; ISO 13399
Tolerance codeM
