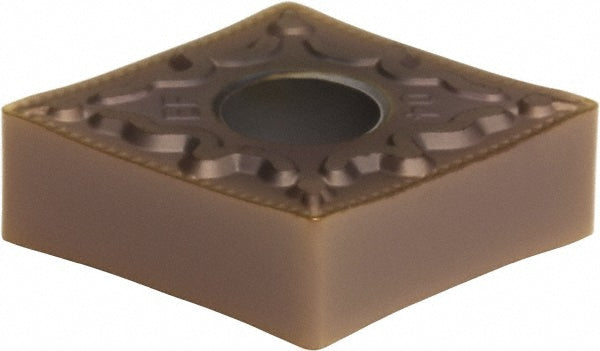

CNMG120404N-EF Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HWCGN

Sumitomo

CNMG120404N-EF Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HWCGN

MFR# 19HWCGNISO/ANSI# CNMG120404Series CN

$11.20List $14.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC520U
MaterialCarbide
CoatingTiAlN

Description

The Sumitomo 19HWCGN is a CNMG120404N-EF carbide indexable insert, grade AC520U, TiAlN coated.

Specifications

Ansi insert codeCNMG431
Ansi size code431
Chip breakerEEF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404N-EF
Iso insert codeCNMG120404
Iso size code120404
Manufacturer gradeAC520U
RakeNeutral
Rake angle0
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
