Sumitomo

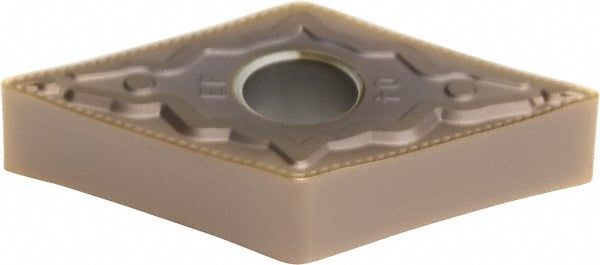

DNMG150404N-EF Solid Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HWCGQ
MFR# 19HWCGQISO/ANSI# DNMG150404N-EFSeries DN
$15.71List $20.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC520U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HWCGQ is a DNMG150404N-EF solid carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Ansi codeDNMG431EEF
Chip breakerEEF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404N-EF
Manufacturer gradeAC520U
RakeNeutral
Rake angle0
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy; Titanium
StandardsANSI; ISO 13399
Tolerance codeM
