Sumitomo

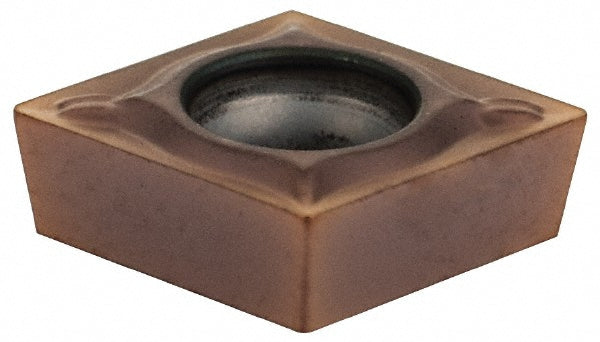

CCMT060202N-SU Carbide Insert, Grade AC520U, Coated - Sumitomo 19HWW05
MFR# 19HWW05ISO/ANSI# CCMT060202N-SUSeries CC
$8.11List $10.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC520U
MaterialCarbide
CoatingCoated
Description
The Sumitomo 19HWW05 is a CCMT060202N-SU carbide indexable insert, grade AC520U, Coated coated.
Specifications
Chip breakerESU
Clearance codeC
Coating finishCoated
Coating processPVD
Corner radius0.0078
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2520
Insert materialCarbide
Insert shapeDiamond
Insert size code21.50.5
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060202N-SU
Manufacturer gradeAC520U
Material gradeC2; C3
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialStainless Steel; Superalloy
StandardsANSI; ISO 13399
Tolerance codeM
