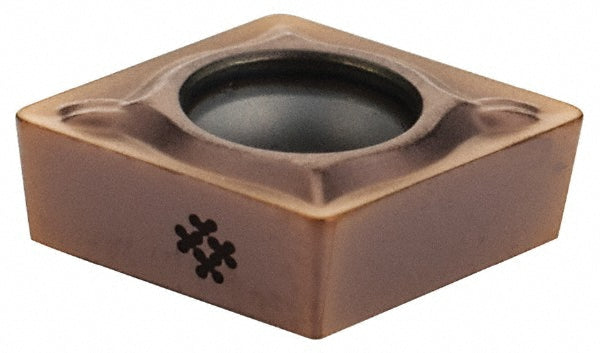

CCMT060204N-SU Carbide Insert, Grade AC520U, Coated - Sumitomo 19HWW0P

Sumitomo

CCMT060204N-SU Carbide Insert, Grade AC520U, Coated - Sumitomo 19HWW0P

MFR# 19HWW0PISO/ANSI# CCMT060204Series CC

$8.11List $10.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC520U
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19HWW0P is a CCMT060204N-SU carbide indexable insert, grade AC520U, Coated coated.

Specifications

Ansi insert codeCCMT21.51
Ansi size code21.51
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishCoated
Coating processPVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2520
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204N-SU
Iso insert codeCCMT060204
Iso size code060204
Manufacturer gradeAC520U
Material gradeC2; C3
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialStainless Steel; Superalloy
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
