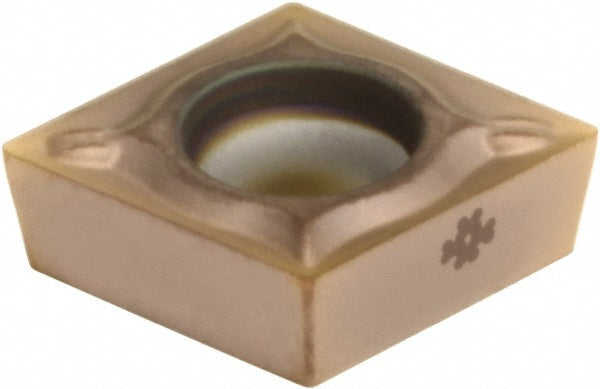

CCMT09T308N-SU Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HWW28
MFR# 19HWW28ISO/ANSI# CCMT09T308N-SUSeries CC
$9.01List $11.55
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC520U
MaterialCarbide
CoatingTiAlN
Description
The Sumitomo 19HWW28 is a CCMT09T308N-SU carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Chip breakerESU
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308N-SU
Manufacturer gradeAC520U
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialStainless Steel; Superalloy; Titanium
StandardsANSI; ISO 13399
Tolerance codeM
