Sumitomo

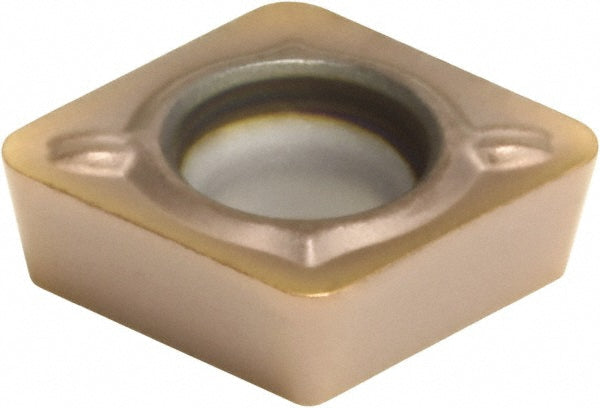

CPMT060204N-SU Solid Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HWW30
MFR# 19HWW30ISO/ANSI# CPMT060204N-SUSeries CPMT
$8.91List $11.23
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC520U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HWW30 is a CPMT060204N-SU solid carbide indexable insert, grade AC520U, TiAlN coated. Suited for stainless steel, steel, superalloy.
Specifications
Ansi codeCPMT21.51ESU
Chip breakerESU
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2520
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code21.5
Insert styleCPMT
Insert thickness in3/32
Iso codeCPMT060204N-SU
Manufacturer gradeAC520U
Primary workpiece materialStainless Steel; Steel; Superalloy
RakePositive
Rake angle8
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
