Sumitomo

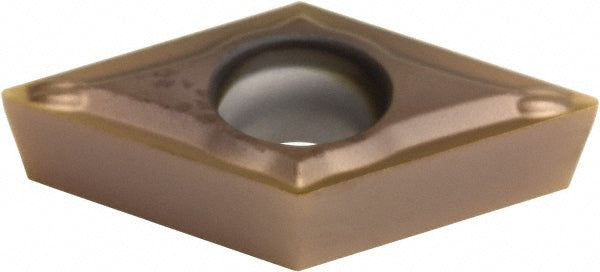

DCMT070204N-SU Solid Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HWW51
MFR# 19HWW51ISO/ANSI# DCMT070204N-SUSeries DC
$11.83List $15.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC520U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HWW51 is a DCMT070204N-SU solid carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Ansi codeDCMT21.51ESU
Chip breakerESU
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1100
Included angle55.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3031
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code21.51
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070204N-SU
Manufacturer gradeAC520U
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialStainless Steel; Superalloy
StandardsANSI; ISO 13399
Tolerance codeM
