Sumitomo

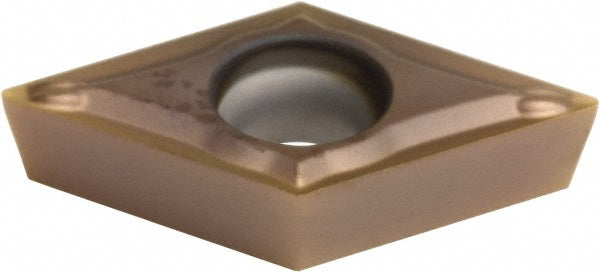

DCMT11T304N-SU Solid Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HWW5T
MFR# 19HWW5TISO/ANSI# DCMT11T304N-SUSeries DC
$14.10List $18.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC520U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HWW5T is a DCMT11T304N-SU solid carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Ansi codeDCMT32.51ESU
Chip breakerESU
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T304N-SU
Manufacturer gradeAC520U
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialStainless Steel; Superalloy
StandardsANSI; ISO 13399
Tolerance codeM
