Sumitomo

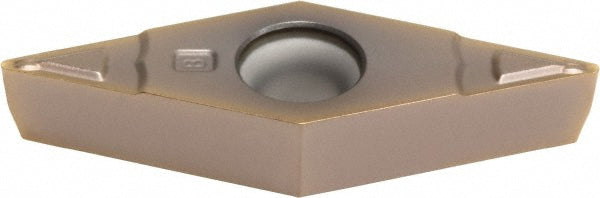

VBMT160408N-SU Solid Carbide Insert, Grade AC520U, TiAlN - Sumitomo 19HWWEB
MFR# 19HWWEBISO/ANSI# VBMT160408N-SUSeries VB
$20.68List $26.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC520U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 19HWWEB is a VBMT160408N-SU solid carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Ansi codeVBMT332ESU
Chip breakerESU
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160408N-SU
Manufacturer gradeAC520U
RakePositive
Rake angle8
Relief angle5
Secondary workpiece materialStainless Steel; Superalloy
StandardsANSI; ISO 13399
Tolerance codeM
