Sumitomo

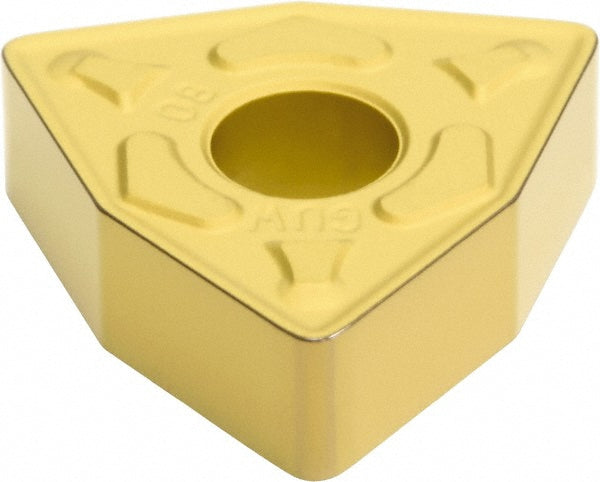

WNMG080412N-GUW Solid Carbide Insert, Grade AC810P, Al2O3 - Sumitomo 19JQ827
MFR# 19JQ827ISO/ANSI# WNMG080412N-GUWSeries TN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC810P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19JQ827 is a WNMG080412N-GUW solid carbide indexable insert, grade AC810P, Al2O3 coated.
Specifications
Ansi codeWNMG433EGUW
Chip breakerEGUW
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080412N-GUW
Manufacturer gradeAC810P
RakeNeutral
Rake angle0
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
Wiper edgeYes
