Sumitomo

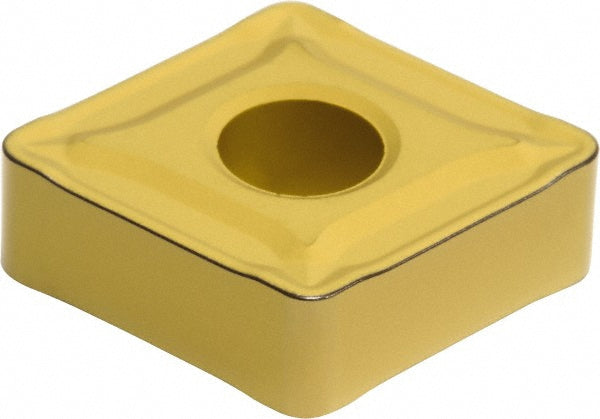

CNMG190612N-MX Carbide Insert, Grade AC810P, Al2O3 - Sumitomo 19JQANJ
MFR# 19JQANJISO/ANSI# CNMG190612N-MXSeries CN
$29.88List $37.65
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeAC810P
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19JQANJ is a CNMG190612N-MX carbide indexable insert, grade AC810P, Al2O3 coated.
Specifications
Chip breakerEMX
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Hole diameter0.3126
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7598
Insert materialCarbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190612N-MX
Manufacturer gradeAC810P
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
