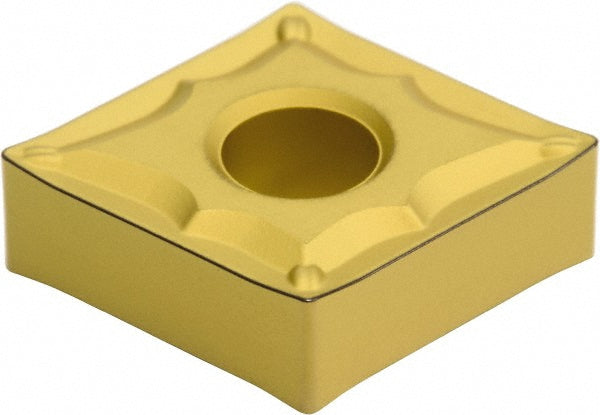

CNMG120404N-SU Carbide Insert, Grade AC810P, Al2O3 - Sumitomo 19JQANZ

Sumitomo

CNMG120404N-SU Carbide Insert, Grade AC810P, Al2O3 - Sumitomo 19JQANZ

MFR# 19JQANZISO/ANSI# CNMG120404Series CN

$12.31List $15.78 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC810P
MaterialCarbide
CoatingAl2O3

Description

The Sumitomo 19JQANZ is a CNMG120404N-SU carbide indexable insert, grade AC810P, Al2O3 coated.

Specifications

Ansi insert codeCNMG431
Ansi size code431
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404N-SU
Iso insert codeCNMG120404
Iso size code120404
Manufacturer gradeAC810P
RakePositive
Rake angle13
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
