DNMG150404N-SE Carbide Insert, Grade AC810P, Al2O3 - Sumitomo 19JQAWE

Sumitomo

DNMG150404N-SE Carbide Insert, Grade AC810P, Al2O3 - Sumitomo 19JQAWE

MFR# 19JQAWEISO/ANSI# DNMG150404Series DN

$16.69List $21.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC810P
MaterialCarbide
CoatingAl2O3

Description

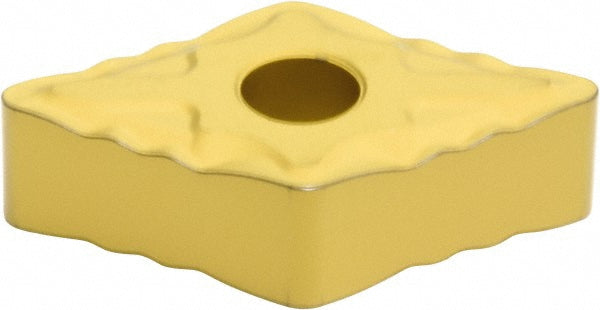

The Sumitomo 19JQAWE is a DNMG150404N-SE carbide indexable insert, grade AC810P, Al2O3 coated.

Specifications

Ansi insert codeDNMG431
Ansi size code431
Chip breakerESE
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance
Hole diameter0.2031
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404N-SE
Iso insert codeDNMG150404
Iso size code150404
Manufacturer gradeAC810P
RakePositive
Rake angle13
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
