Sumitomo

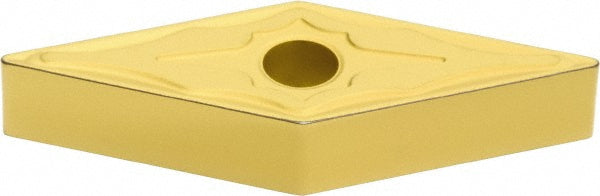

VNMG160412N-UX Carbide Insert, Grade AC810P, Al2O3 - Sumitomo 19JQBKQ
MFR# 19JQBKQISO/ANSI# VNMG160412N-UXSeries VN
$18.42List $23.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC810P
MaterialCarbide
CoatingAl2O3
Description
The Sumitomo 19JQBKQ is a VNMG160412N-UX carbide indexable insert, grade AC810P, Al2O3 coated.
Specifications
Chip breakerEUX
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialCarbide
Insert shapeDiamond
Insert size code333
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160412N-UX
Manufacturer gradeAC810P
RakeNeutral
Rake angle0
Relief angle0
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
