Sumitomo

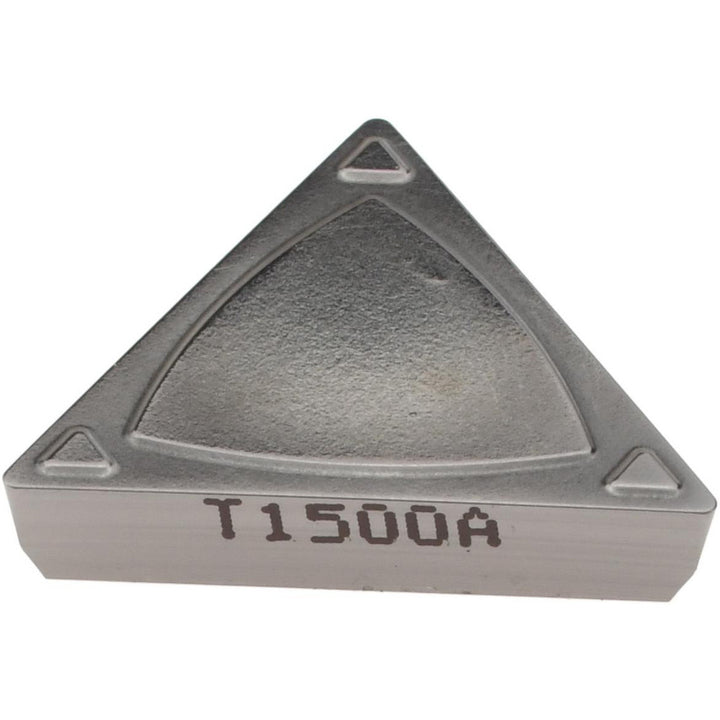

TPMR160304N-FK Cermet Insert, Grade T1500A - Sumitomo 19JT466
MFR# 19JT466ISO/ANSI# TPMR160304N-FKSeries TPMR
$11.64List $14.67
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeT1500A
MaterialCermet
Description
The Sumitomo 19JT466 is a TPMR160304N-FK cermet indexable insert, grade T1500A. Suited for steel.
Specifications
Chip breakerEFK
Clearance codeP
Corner radius in1/64
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6496
Insert materialCermet
Insert shapeTriangle
Insert size code321
Insert styleTPMR
Insert thickness in1/8
Iso codeTPMR160304N-FK
Manufacturer gradeT1500A
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
