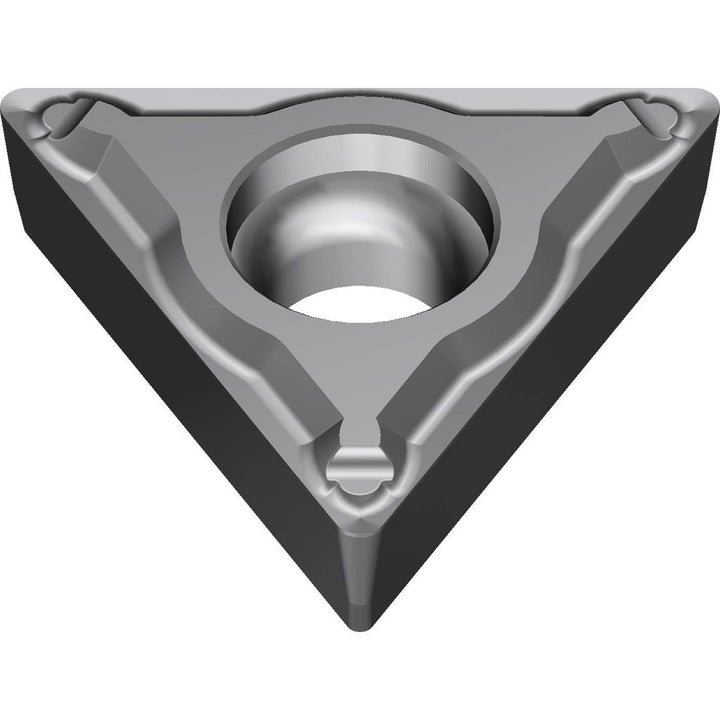

TCMT16T308N-FP Cermet Insert, Grade T1500A - Sumitomo 19JTAGF
MFR# 19JTAGFISO/ANSI# TCMT16T308Series TCMT
$9.37List $12.01
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeT1500A
MaterialCermet
Description
The Sumitomo 19JTAGF is a TCMT16T308N-FP cermet indexable insert, grade T1500A. Suited for steel.
Specifications
Ansi insert codeTCMT32.52
Ansi size code32.52
Chip breakerEFP
Chip breaker operationFinishing
Clearance codeC
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance
Hole diameter0.1693
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCermet
Insert shapeT - Triangle
Insert size code32.5
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T308N-FP
Iso insert codeTCMT16T308
Iso size code16T308
Manufacturer gradeT1500A
Primary workpiece materialSteel
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
