Sumitomo

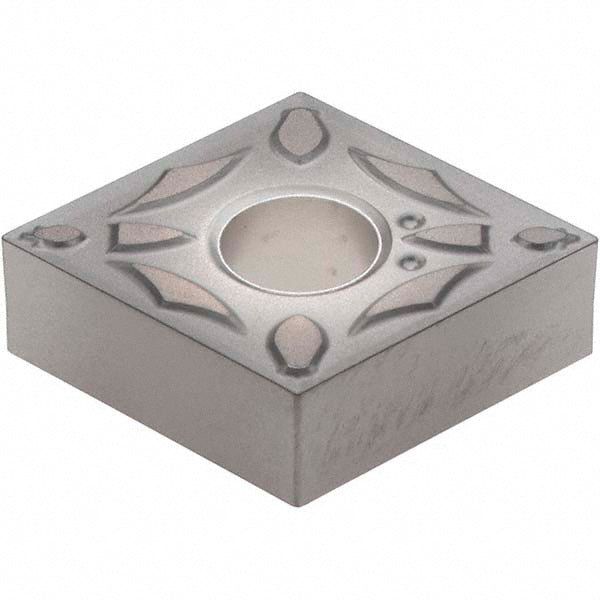

CNMG120402N-FA Cermet Insert, Grade T1500A - Sumitomo 19JTBNC
MFR# 19JTBNCISO/ANSI# CNMG120402N-FASeries CN
$10.20List $12.85
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeT1500A
MaterialCermet
Description
The Sumitomo 19JTBNC is a CNMG120402N-FA cermet indexable insert, grade T1500A. Suited for steel.
Specifications
Chip breakerEFA
Clearance codeN
Corner radius in1/128
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCermet
Insert shapeDiamond
Insert size code430.5
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120402N-FA
Manufacturer gradeT1500A
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
