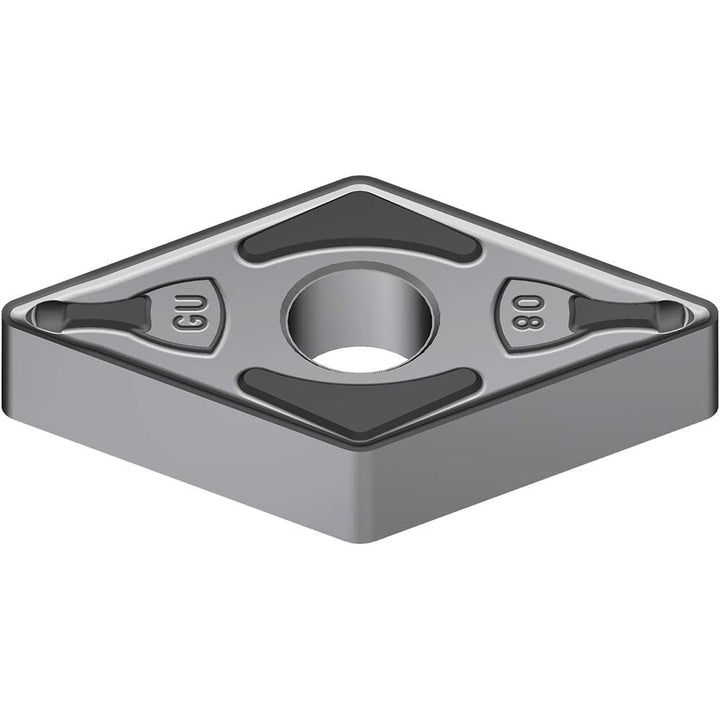

DNMG150404N-GU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7156

Sumitomo

DNMG150404N-GU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7156

MFR# 19P7156ISO/ANSI# DNMG150404Series DN

$17.51List $22.47 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC8025P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19P7156 is a DNMG150404N-GU carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.

Specifications

Ansi insert codeDNMG431
Ansi size code431
Chip breakerEGU
Chip breaker operationLight Machining; Medium Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/64
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404N-GU
Iso insert codeDNMG150404
Iso size code150404
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
