Sumitomo

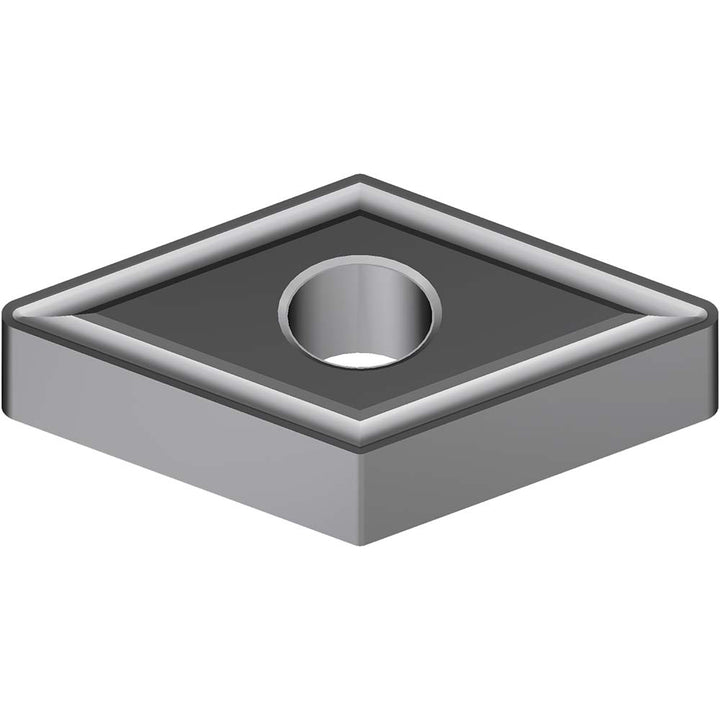

DNMG190612N-UZ Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7252
MFR# 19P7252ISO/ANSI# DNMG190612N-UZSeries DN
$27.58List $35.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeAC8025P
MaterialCarbide
CoatingCoated
Description
The Sumitomo 19P7252 is a DNMG190612N-UZ carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Chip breakerENZ
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in3/64
Full radiusNo
Hole diameter0.2500
Included angle55
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7638
Insert materialCarbide
Insert shapeDiamond
Insert size code543
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG190612N-UZ
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
