Sumitomo

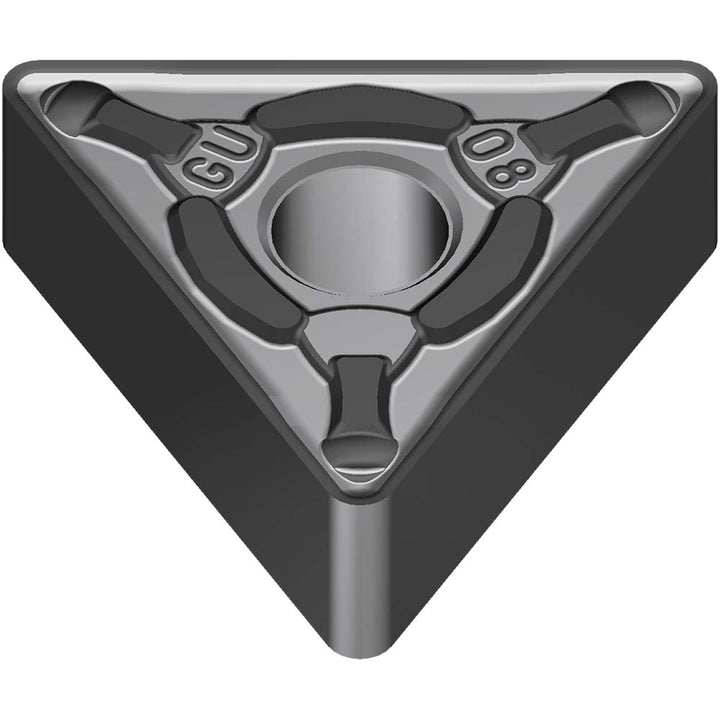

TNMG220408N-GU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7272
MFR# 19P7272ISO/ANSI# TNMG220408N-GUSeries TN
$14.57List $18.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeAC8025P
MaterialCarbide
CoatingCoated
Description
The Sumitomo 19P7272 is a TNMG220408N-GU carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Chip breakerEGU
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Full radiusNo
Hole diameter0.2031
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408N-GU
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
