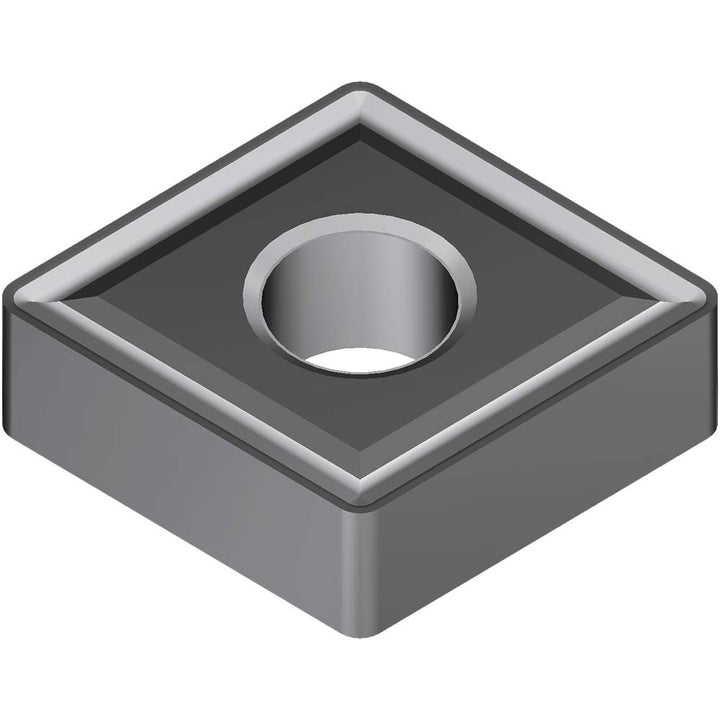

CNMG190608N-UZ Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7280
MFR# 19P7280ISO/ANSI# CNMG190608N-UZSeries CN
$25.48List $32.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeAC8025P
MaterialCarbide
CoatingCoated
Description
The Sumitomo 19P7280 is a CNMG190608N-UZ carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Chip breakerENZ
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Full radiusNo
Hole diameter0.3126
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7598
Insert materialCarbide
Insert shapeDiamond
Insert size code642
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190608N-UZ
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
