Sumitomo

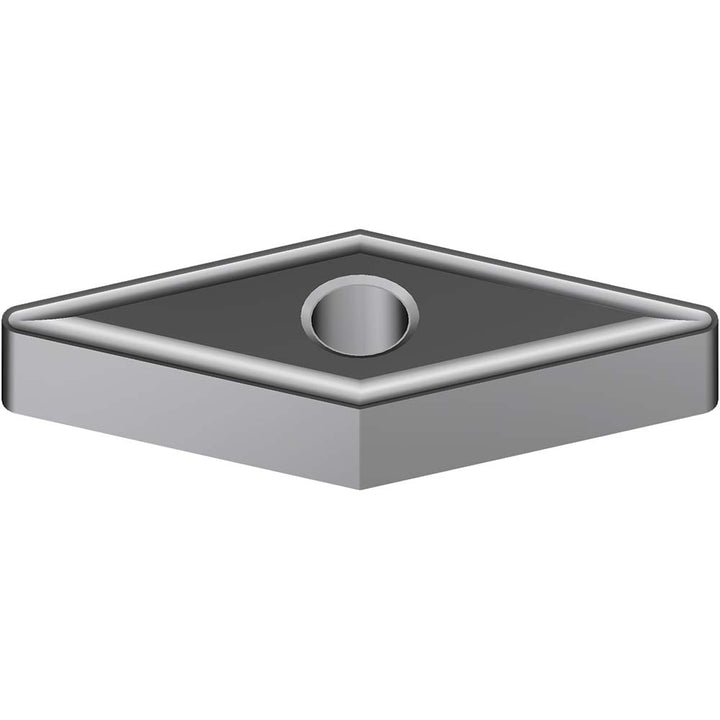

VNMG220408N-UZ Solid Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7302
MFR# 19P7302ISO/ANSI# VNMG220408N-UZSeries VN
$23.85List $30.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC8025P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19P7302 is a VNMG220408N-UZ solid carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Ansi codeVNMG432ENZ
Chip breakerENZ
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in1/32
Full radiusNo
Hole diameter0.2031
Included angle35.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8701
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG220408N-UZ
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
