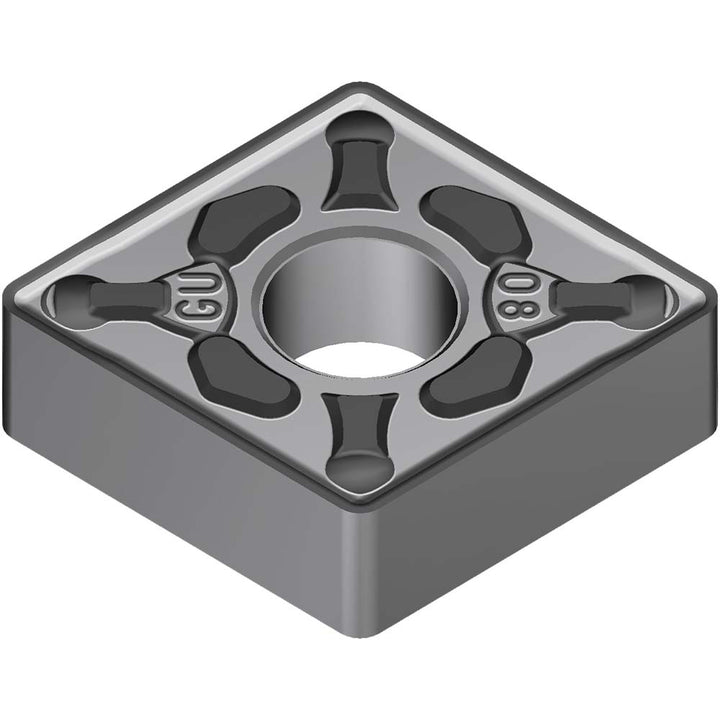

CNMG120412N-GU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7336

Sumitomo

CNMG120412N-GU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7336

MFR# 19P7336ISO/ANSI# CNMG120412Series CN

$12.93List $16.58 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC8025P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19P7336 is a CNMG120412N-GU carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.

Specifications

Ansi insert codeCNMG433
Ansi size code433
Chip breakerEGU
Chip breaker operationLight Machining; Medium Machining
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in3/64
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412N-GU
Iso insert codeCNMG120412
Iso size code120412
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
