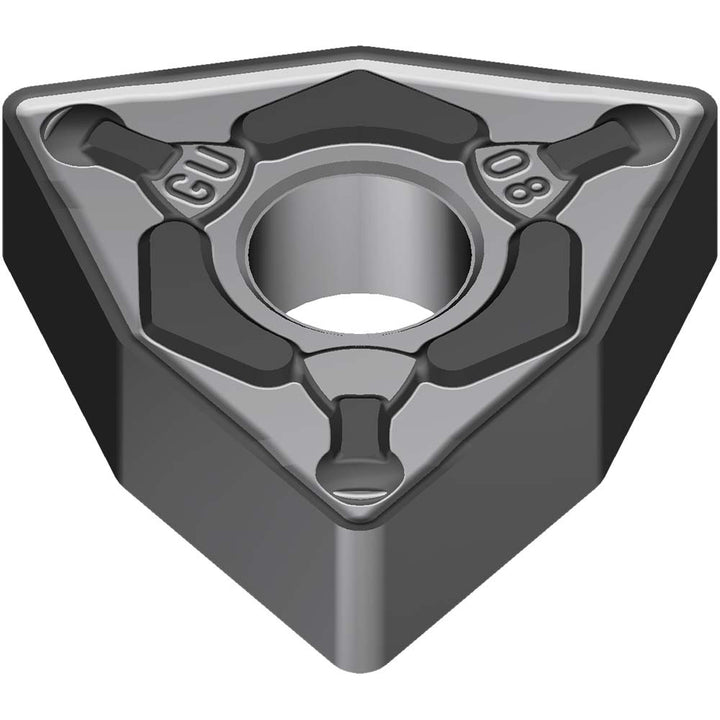

WNMG080412N-GU Carbide Insert, Grade AC8025P, Coated - Sumitomo 19P7338
MFR# 19P7338ISO/ANSI# WNMG080412N-GUSeries TN
$12.93List $16.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeAC8025P
MaterialCarbide
CoatingCoated
Description
The Sumitomo 19P7338 is a WNMG080412N-GU carbide indexable insert, grade AC8025P, Coated coated. Suited for steel.
Specifications
Chip breakerEGU
Clearance codeN
Coating finishCoated
Coating processCVD
Corner radius in3/64
Full radiusNo
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080412N-GU
Manufacturer gradeAC8025P
Multi use toolNo
Primary workpiece materialSteel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
